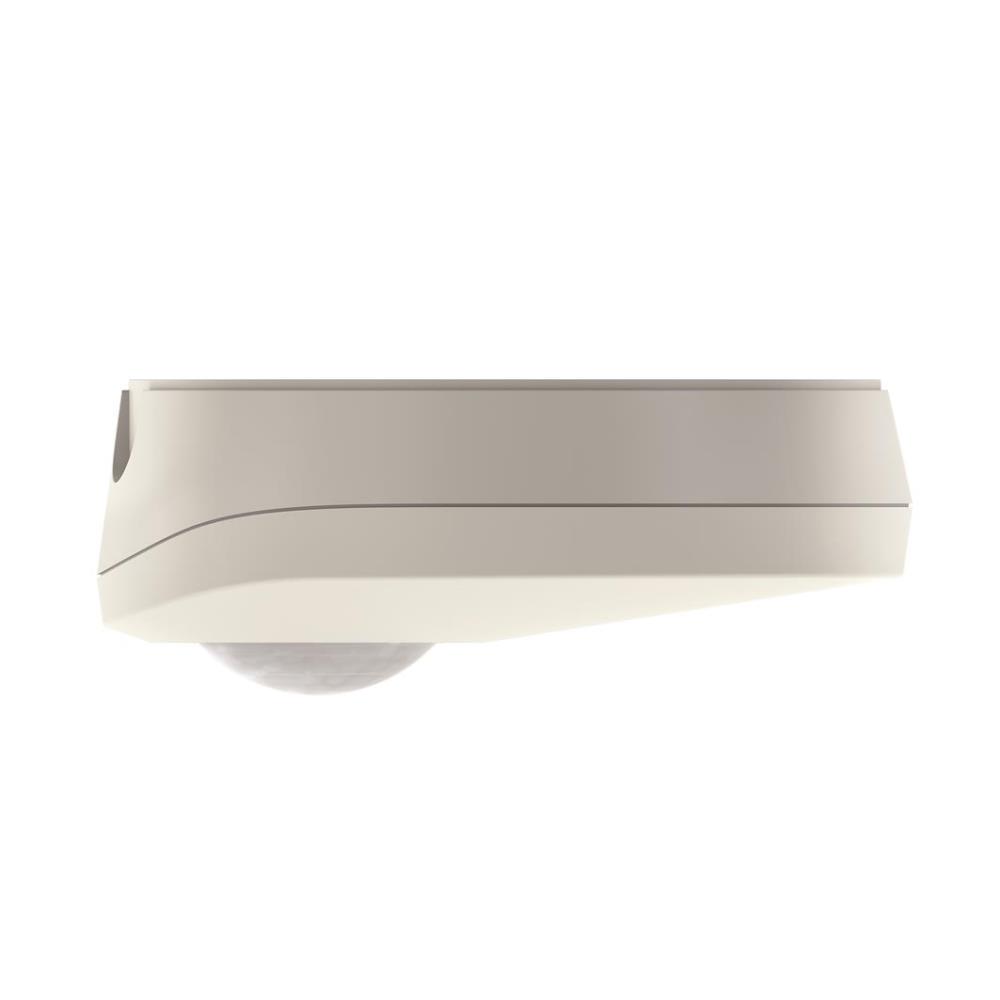

Theben LUXA 103-100 AP WH Ceiling PIR Sensor 360deg White 1ch Surface Mount
View item in Hamer catalogue: Timers & Sensors on page 52
  • Motion detector (PIR) for indoor ceiling surface installation.
  • Suitable for toilets, small rooms, workplaces, offices, etc.
  • Automatic lighting control based on presence and brightness.
  • 1 channel.
  • IP44.
  • Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps.
  • Zero-cross switching for relay-saving switching and high lamp loads up to 400W >2W.
  • Single-handed plug-in installation with captive screws.
  • Instant start-up possible via factory preset.
  • No unintentional adjustment due to covered up controls.
  • Adjustable brightness switching value and switch-off delay.
Code Cat# Type Detection Angle Colour Features Indoor Use Installation Height Mounting Power
1030022 1030022 Motion Detector (PIR) 360° x 7mt diagonal radius White 1ch, Zero-cross switching 400W LED load >2W IP44 2 to 3 mt Ceiling Surface Mount 115mm Ø 230V AC, 50-60Hz, 10A
