Schmersal Metal Pull Wire Switch - TQ 441-01/01Y-UE-R-1573
Features
  • Schmersal pull wire switches are manually operated to give signals to start machines and to open or close electrically driven doors, gates and barriers.
  • Metal enclosure with two M20 cable entries.
  • Wire up to 25m long.

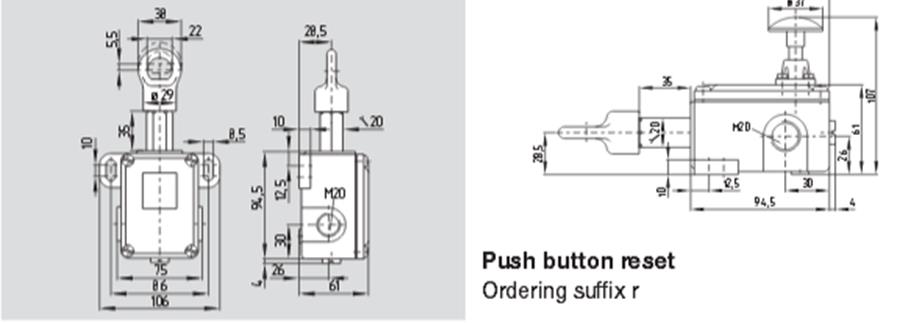

  • Push button reset.
  • Silver contacts.
  • Low 35N actuating force.
  • Other varieties available on request.
Code Cat# Material of Housing/Cover Dimensions of Body (W x L x H) Protection Class Contact Type Switching Principle Electrical Connection Utilisation Category Switching Frequency Notes
1085279 TQ 441-01/01Y-UE-R-1573 Light-alloy diecast / Steel, painted 75mm x 61mm x 94.5mm IP65 Change-over contact, double break with 2 separate contact bridges, positive break NC contacts Slow action, positive break NC contacts Screw connection AC-15 3600/h Indent Item
