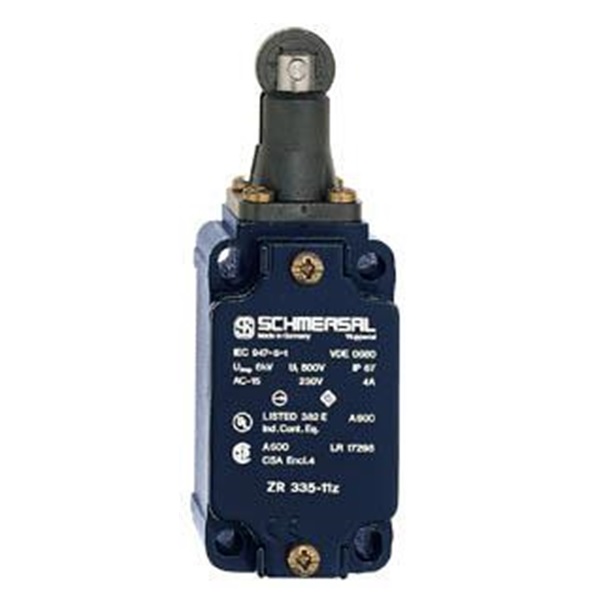

Schmersal Metal Position Switch with Roller Plunger R - ZR 335-11Z
Features
  • Schmersal Type 1 position switches according to EN ISO 14119 are for determining the position and monitoring of movable components on machines and for protective equipment that can be moved laterally or is rotatable.
  • In combination with safety monitoring modules these Type 1 position switches achieve Control Category 3 or 4 to EN 954-1.
  • Metal enclosure with roller plunger R.
  • Solid silver contacts.
  • Good resistance to oil and petroleum spirit.
  • Actuator heads can be repositioned by 4 x 90°.
  • Snap action with constant contact pressure up to switching point.
  • 1 cable entry M 20 x 1,5.
  • (Minor differences between the printed image and the original product may exist).
Code Cat# Dimensions (W x L x H) Material of Housing Control Element Design Switching Principle Electrical Connection Utilisation Category Switching Frequency Notes
1154447 ZR 335-11Z 40.5mm x 38mm x 116.6mm Aluminium Normally open contact (NO), Opener (NC) Snap switch element Screw connection AC-15: 230 V / 4 A, DC-13: 24 V / 4 A max. 5000/h Indent Item
