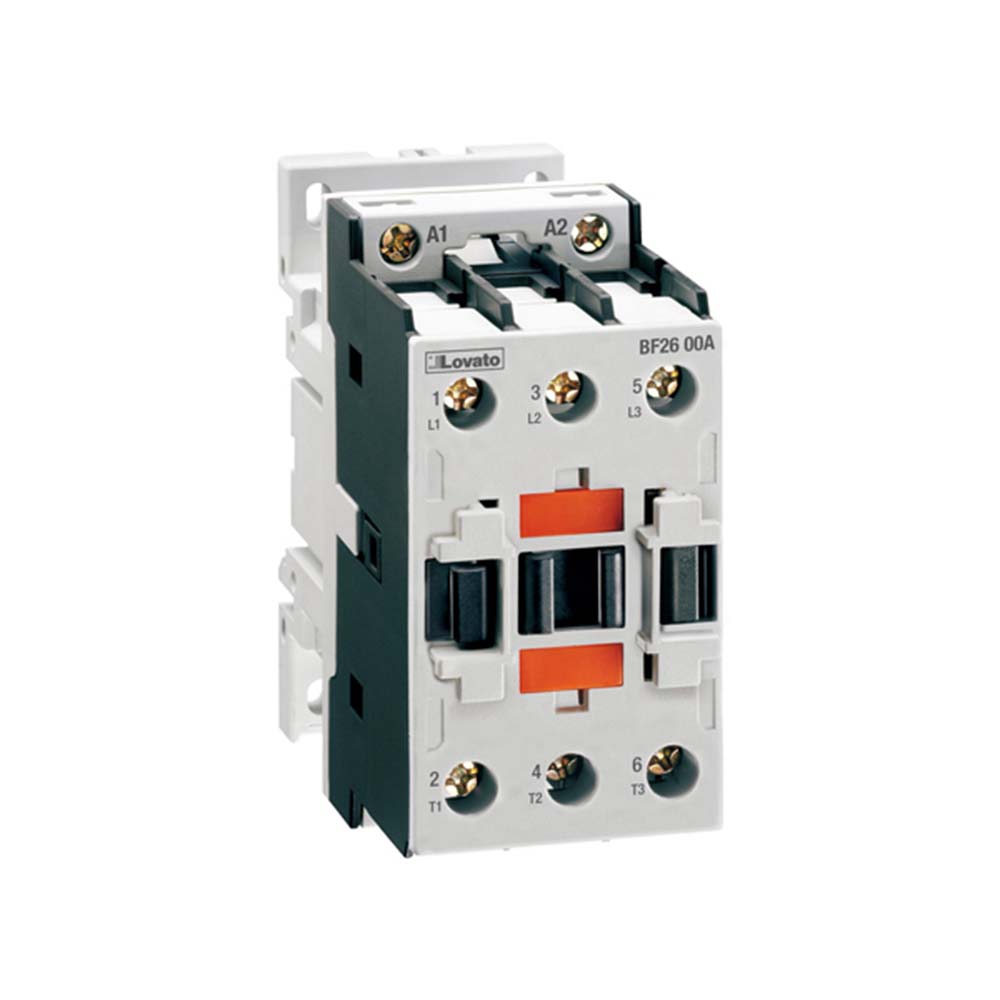

Lovato 3 Pole Contactors 26-38A
Features
  • Lovato BF Series contactors are all designed for long life and have finger safe protection.
  • Highly conductive auxiliary contacts with four contact points.
  • Quick connect - snap on accessory mounting.
  • Distinct contact status indication.
  • Up to four auxiliary contacts can be mounted.
  • Mechanical interlock only 5mm deep.
  • Positive (force) guided contacts (mechanically-linked per IEC).
  • Dimensions: H 90mm x W 45mm x D 107,5mm.
  • Manufactured under ISO 9001 quality conditions.
  • Other models available on request.
Code Cat# Max power at 400V (kW) Operating current Ie(AC3)≤440V(A) Incorporated auxiliary contacts Coil voltage Notes
BF2600A230 BF2600A230 13 26 - 230VAC Indent Item
BF3200A230 BF3200A230 16 32 - 230VAC Indent Item
BF3200A048 BF3200A048 16 32 - 48VAC Indent Item
BF3200A400 BF3200A400 16 32 - 400VAC Indent Item
BF3800A230 BF3800A230 18.5 38 - 230VAC Indent Item
(No drawing available)
