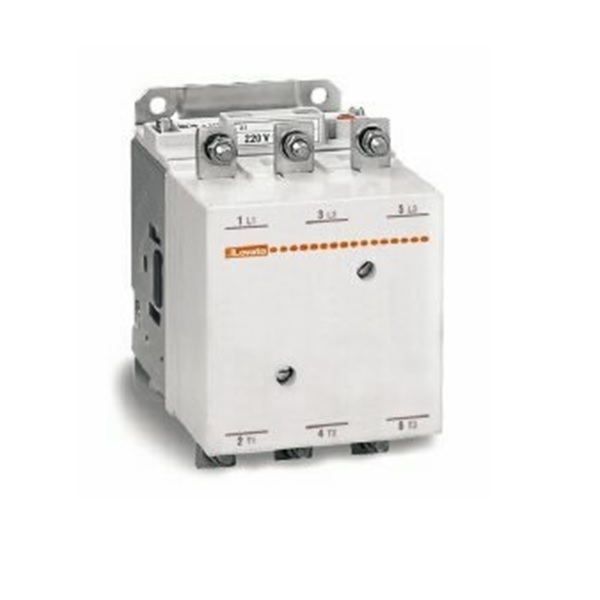

Lovato 3 Pole Maxi-Contactors 115-185A
Features
  • Lovato B series contactors are all designed for long life and have finger safe protection.
  • Three frame sizes offering 11 different contactors.
  • Coil removable without disconnecting power wiring.
  • Red indicator when conductor is energised.
  • Unique right-angle magnet design which limits contact bounce.
  • Safety feature prevents contactor being energised without arc chute in place and locked.
  • Contactor terminals with bolt, washer and nut.
  • Simple horizontal or vertical interlock.
  • Positive (force) guided contact (mechanically-linked per IEC).
  • Dimensions: H 170mm x W 120mm x D 184mm.
  • Screw termination.
  • Manufactured under ISO 9001 quality conditions.
  • Other models available on request.
Code Cat# Max power at 400V (kW) Operating current Ie(AC3)≤440V(A) Coil voltage Notes
11B14500220 11B14500220 80 150 220/240VAC/DC Indent Item
11B18000220 11B18000220 100 185 220/240VAC/DC Indent Item
(No drawing available)
