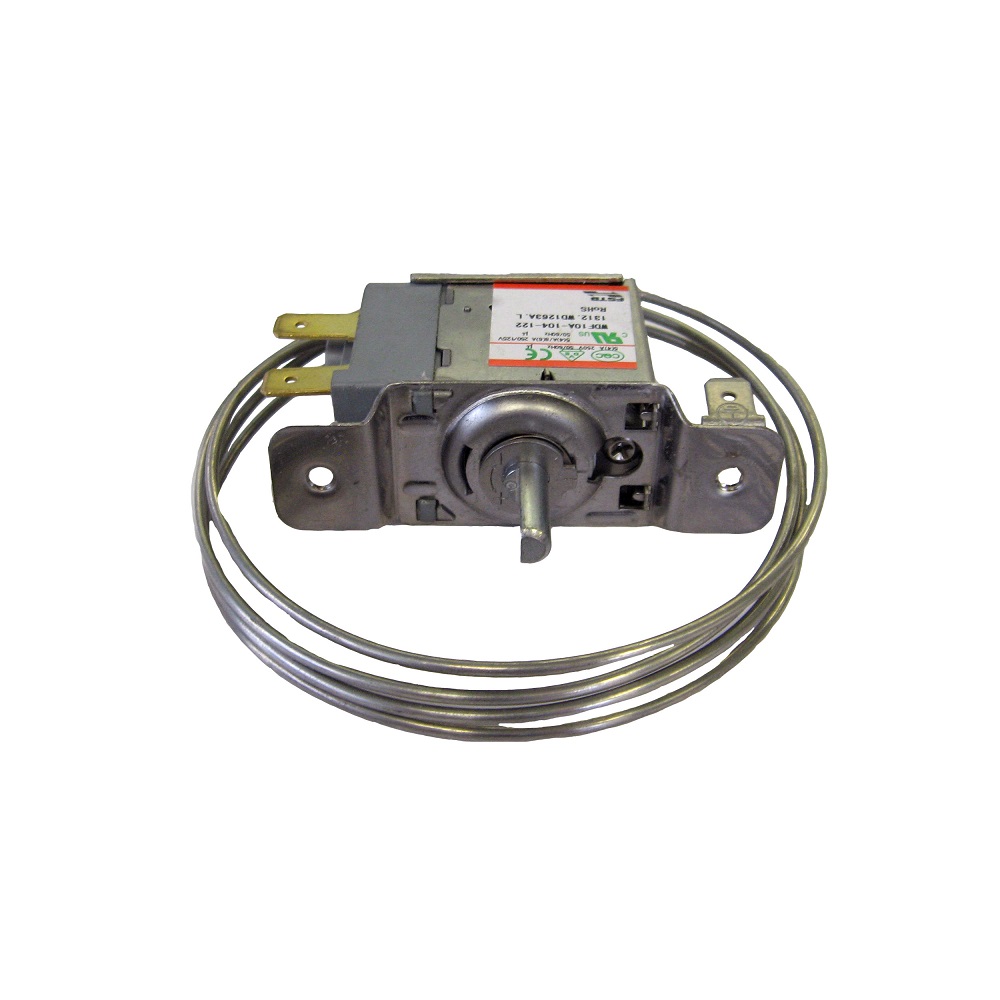

Bottle Cooler Thermostat
Features
  • Contact Mechanism: Single Pole Single Throw (SPST).
  • Capillary Length: 1 meter.
  • Turn-On Temperature: Fixed at 5°C.
  • Adjustable Turn-Off Range: -10.1°C~2.9°C.
  • Power Factor (COSΦ): 1 for non-inductive current, 0.75 for inductive full load, and 0.45 for locked rotor.
  • Electrical Rating (125V AC): 1~8A for non-inductive current, 1~6A for inductive full load, and 1~24A for locked rotor.
  • Design Style: Compact bead-style housing with dual spade terminal connectors.
Hamer
Code Cat# Temperature Range Electrical Ratings Power Factor (COSФ) Electrical Ratings 125V AC Capillary Length
SI178 DTB-X178 ON : 5°C, Adjustable OFF: -10.1-2.9°C Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current:1-8 | Inductive current - Full load:1-6, Locked Rotor: 1-24 1m
(No drawing available)
