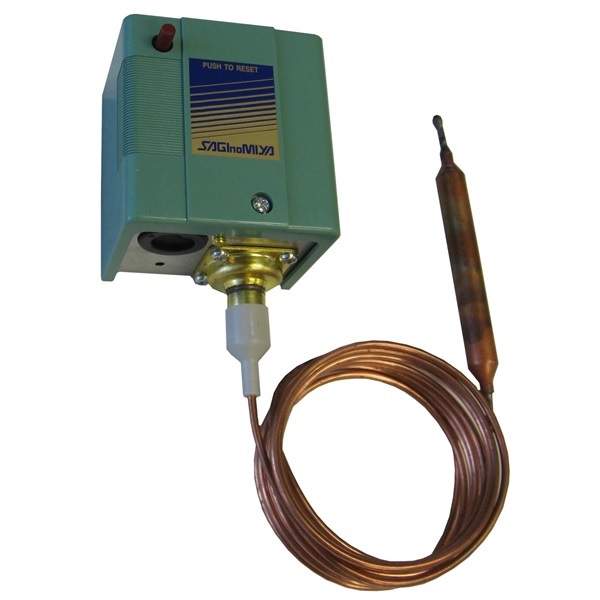

Saginomiya INS High Limit Capillary Thermostat (Manual Reset)
Features
  • High limit, capillary thermostat with manual reset on temperature increase.
  • SPDT contact mechanism.
  • Supplied with mounting bracket.
  • IP20.
Code Cat# Temp Adjust Range Electrical Ratings Power Factor (COSФ) Electrical Ratings 125/250V AC Capillary Length Bulb Size (dia. X L)
SG551 INS-C1070XM1Q2 25-75°C Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current:12| Inductive current - Full load:12, Locked Rotor: 72 1m 9.5mm x 80mm
SG552 INS-C1120XM1Q2 70-120°C As above As above 1m 9.5mm x 80mm
SG553 INS-C1150XM1L2 115-150⁰C As above As above 2m 9.5mm x 80mm
(No drawing available)
