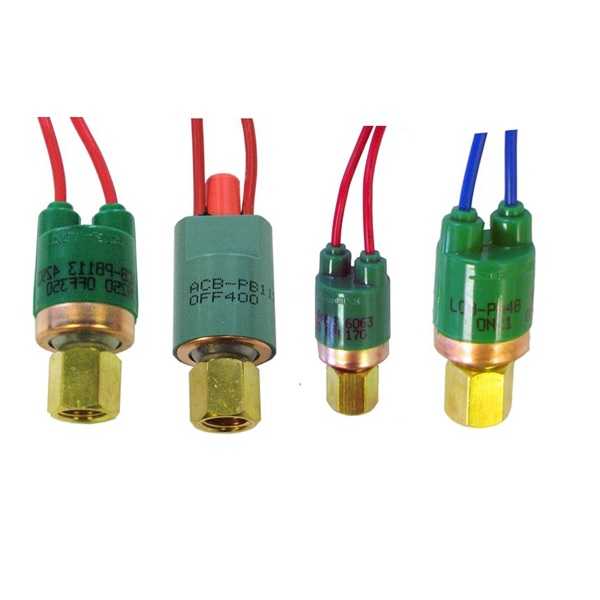

Saginomiya Disc Type Small Pressure Control (Low)
Sagi Disc Type.jpg
View item in Hamer catalogue: Control on page 18
Features
  • Disc type small pressure control for low pressure range.
  • Compact structure and high quality.
  • Designed to suit a variety of applications - air conditioning, automotive and others.
  • Low pressure cut out.
  • SPST (low cut) contact action.
  • Fluid temperature: -54 to 135°C.
  • Ambient temperature: -30 to 100°C.
  • Waterproof terminal construction.
Code Cat# Pressure Off Pressure On Electrical Ratings Power Factor (COSФ) Electrical M Ratings 125V AC Electrical M Ratings 250V AC Electrical M Ratings 12V DC
SG3048 LCB-PA48 6±5 PSI 21±7 PSI Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current: 1-6 | Inductive current - Full load: 1-6, Locked Rotor: 1-16 Non-inductive current: 1-4 | Inductive current - Full load: 1-4, Locked Rotor: 1-24 Non-inductive current: 1-4
SG3095 LCB-PA95 10±5 PSI 25±5 PSI As above As above As above As above
SG3096 LCB-PA96 35±7 60±7 As above As above As above As above
SG1053 ACB-PA53 170±14 250±14 As above As above As above As above
SG1055 ACB-PA55 200±20 259±10 As above As above As above As above
SG2051 ACB-PB51 410±14 335±14 As above As above As above As above
SG2052 ACB-PB52 385±14 310±14 As above As above As above As above
SG2111 ACB-PB111 400±14 300±21 As above As above As above As above
SG2112 ACB-PB112M 400±28 <300 Manual As above As above As above As above
SG2113 ACB-PB113 350±10 250±20 As above As above As above As above
(No drawing available)
