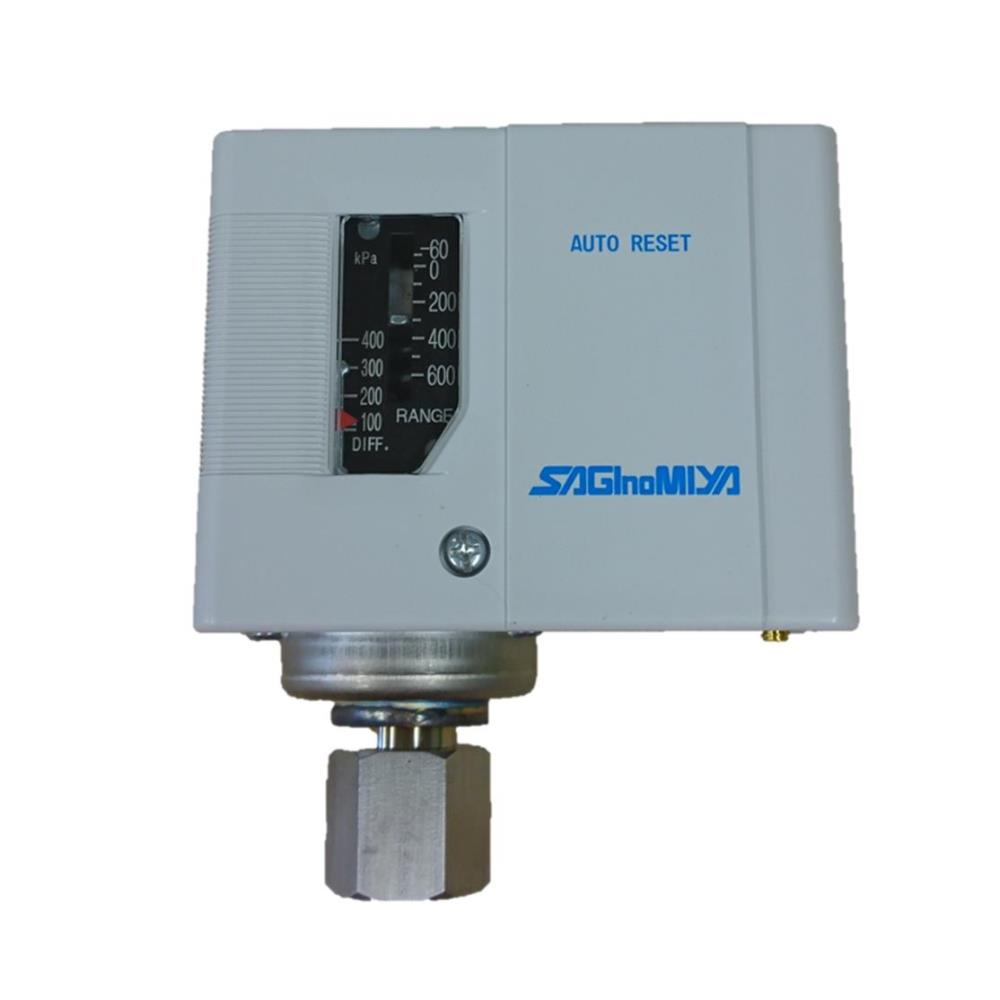

Saginomiya SNS Stainless Steel Single Pressure Control (Auto Reset)

View item in Hamer catalogue: Control on page 9

Features

Stainless steel, single pressure control with auto reset and adjustable differential.
For use with ammonia, fluorinated refrigerants as well as with air and water.
Allowable fluid temp: -20°C - 120°C.
Supplied with mounting bracket.
SPDT contact mechanism.
1/4" - 18 NPT female thread.

Electrical Ratings Power Factor (COSФ)

Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45

Electrical Ratings 125/250V AC

Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72

Code	Cat#	Pressure Range	Differential Range	Notes
SG260	SNS-C106XN	Range: -60 to 600KPa (-8.7 to 87 PSI)	60 to 400KPa (8.7 to 58.01 PSI)	-
SG275	SNS-C110XN	Range: 100 to 1000KPa 14.5 to 145 PSI)	100 to 300KPa (14.5 to 43.5 PSI)	-
SG282	SNS-C130XN	Range: 500 to 3000KPa (72.5 to 435 PSI)	300 to 1000KPa (43.5 to 145 PSI)	Indent Item

(No drawing available)
