Saginomiya HNS Stainless Steel Single Pressure Control - High Pressure Safety Cut Out
View item in Hamer catalogue: Control on page 13
Features
  • Stainless steel, single pressure control with either automatic or manual reset and high pressure safety cut out.
  • For use with ammonia, fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Supplied with mounting bracket.
  • SPDT contact mechanism.
  • 1/4" - 18 NPT female thread.
  • See pdf for contact function.
Code Cat# Pressure Range Differential Electrical Ratings Power Factor (COSФ) Electrical Ratings 125/250V AC Reset Type
SG212 HNS-C130XM1N 800 to 3000KPa (116 to 435.1 PSI). Manual reset, trips on pressure increase. Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72 Manual

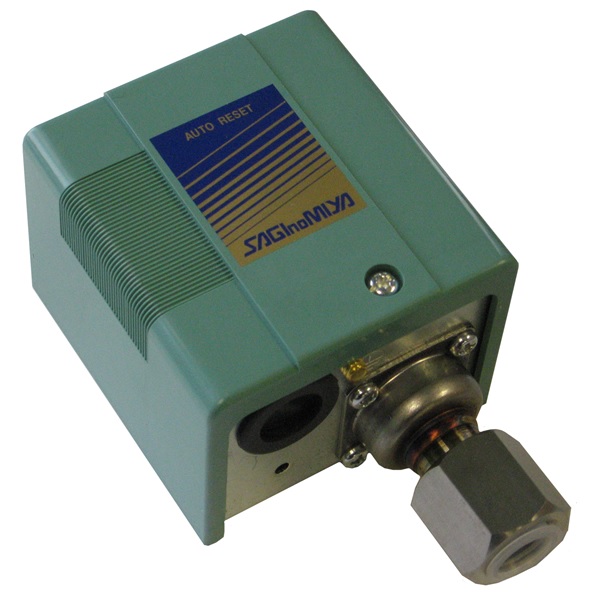

SG215 HNS-C130XN 800 to 3000KPa (116 to 435.1 PSI) Fixed: 400KPa (58 PSI) As above As above Automatic
(No drawing available)
