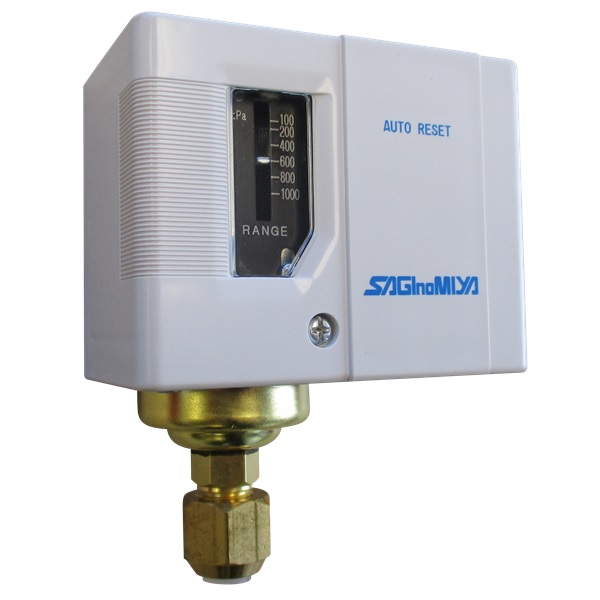

Saginomiya FNS Single Pressure Control - Fixed Narrow Differential
View item in Hamer catalogue: Control on page 6
Features
  • Single pressure control with fixed narrow differential.
  • Auto reset.
  • For use with fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4”.
  • Supplied with mounting bracket.
  • SPDT contact mechanism.
Code Cat# Pressure Range Differential (Fixed) Electrical Ratings Power Factor (COSФ) Electrical Ratings 125/250V AC
SG320 FNS-C101X -60 to 100KPa (-8.7 to 14.5 PSI) 6KPa (0.87 PSI) Non-inductive current: 1 | Inductive current - Full load: 0.75, Locked Rotor: 0.45 Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72
SG325 FNS-C102X -20 to 200KPa (-2.9 to 29 PSI) 8KPa (1.16 PSI) As above As above
SG340 FNS-C110X 100 to 1000KPa (14.5 to 145 PSI) 25KPa (3.62 PSI) As above As above
SG350 FNS-C130X 500 to 3000KPa (72.5 to 435.1 PSI) 120KPa (17.4 PSI) As above As above
(No drawing available)
