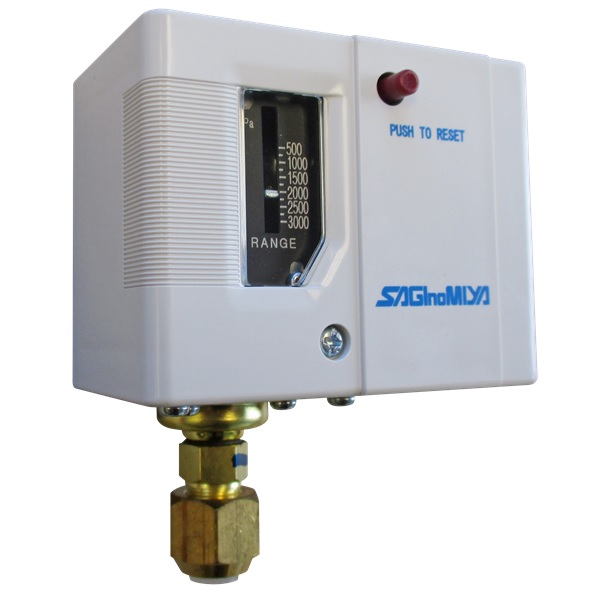

Saginomiya SNS Single Pressure Control (Manual Reset)
View item in Hamer catalogue: Control on page 5
Features
  • Single pressure control with manual reset.
  • For use with fluorinated refrigerants as well as with air and water.
  • Allowable fluid temp: -20°C - 120°C.
  • Flare nut 1/4” 7/16-20 UNF thread.
  • Supplied with mounting bracket.
  • SPDT contact mechanism.
  • See pdf for contact function.
Code Cat# Pressure Range Electrical Ratings Power Factor (COSФ) Electrical Ratings 125/250V AC
SG290 SNS-C130XM2 500 to 3000KPa (-8.7 to 87 PSI) Manual reset. Trips on pressure decrease. Non-inductive current: 1 | Inductive current - Full load: 0,75, Locked Rotor: 0,45 Non-inductive current: 12 | Inductive current - Full load: 12, Locked Rotor: 72
(No drawing available)
