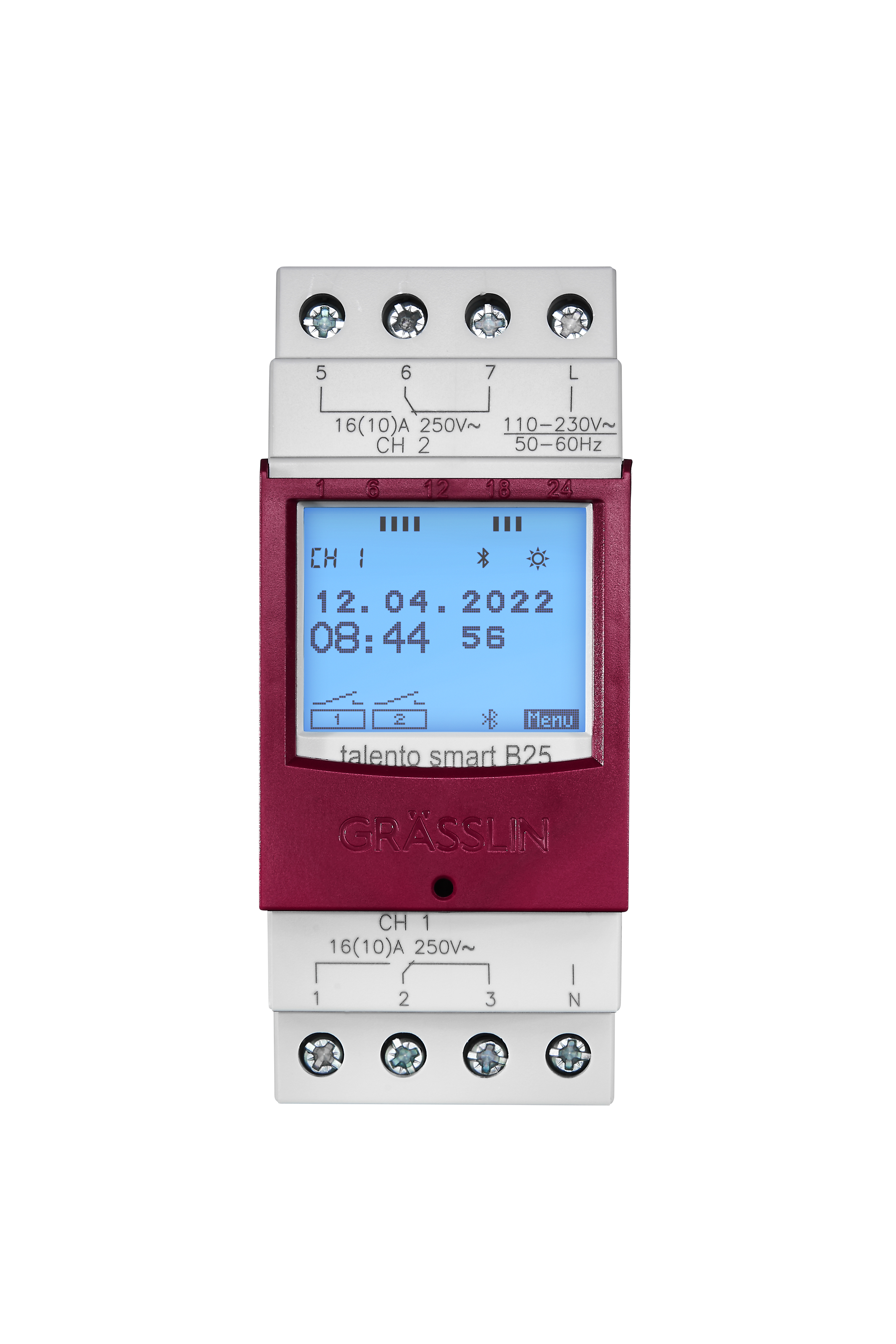

Digital DIN-rail timer with 100 memory spaces for creating a date-specific program (ON/OFF) and ten date-independent programs (ON/OFF) with a minimum switching time of 1 minute. Free weekday block formation. Summer/winter time adjustment can be automatic, date-specific or deactivated. 12/24 h setting. Switching state display. Integrated hours counter with maintenance mode. Manual switch: Automatic, Fix ON/OFF, Override. White display lighting makes it easy to read. Non-volatile memory (EEPROM) for storing programs in the event of a power outage. Power reserve via battery of up to eight years. The clock can be sealed and can be protected with a PIN to prevent unauthorised access.
Programming is performed either directly on the clock or conveniently by means of mobile devices and the corresponding apps (Android and iOS) and PC software.
| Code | Item No. | Operating Voltage | Power Reserve | Shortest Switching Time | Type of Installation | Type of Contact | PROG. Functions | Number of Channels |
|---|---|---|---|---|---|---|---|---|
| 430200021 | 43.02.0002.1 | 110-230V AC | 8 Years | 1 min | DIN Rail | Changeover Contact | Weekly ON-OFF, Annual ON-OFF | 2 Channel |
