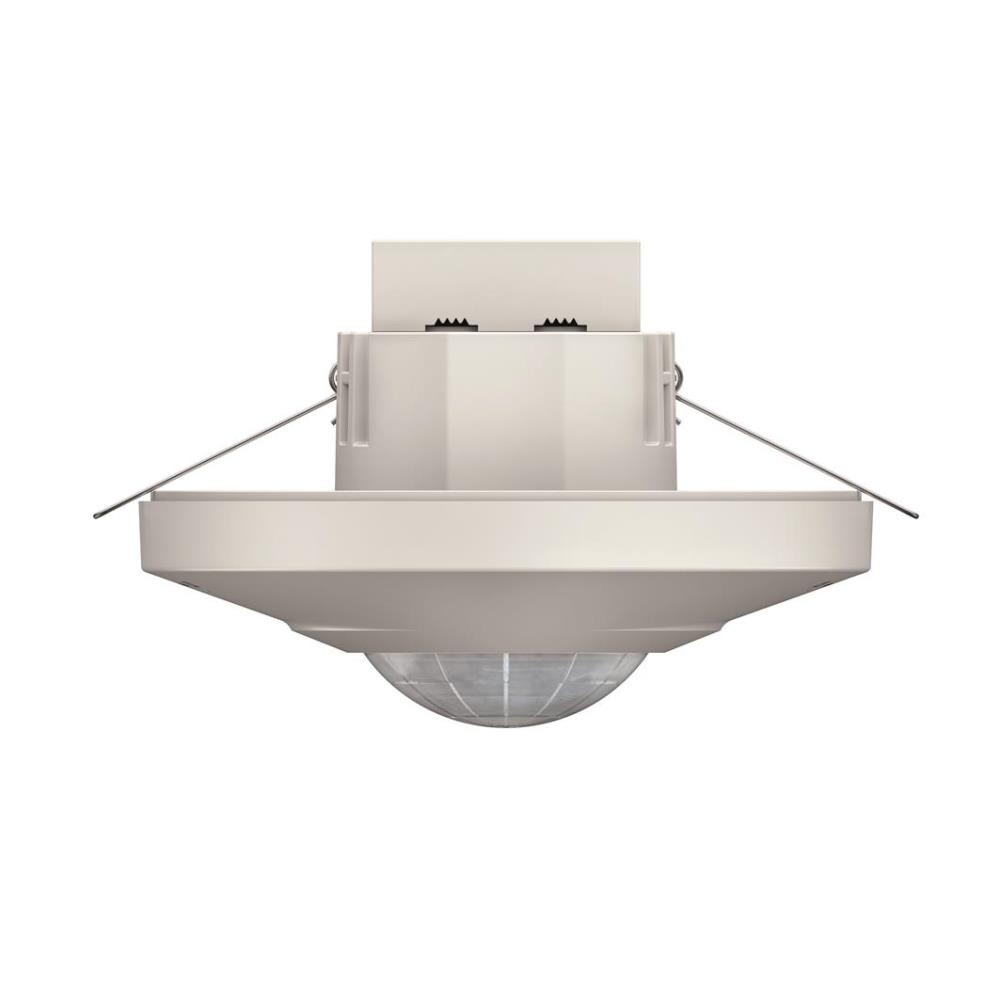

Theben LUXA 103-100 UA WH Ceiling PIR Motion Detector with Microphone Acoustic Sensor 360deg White 1ch
View item in Hamer catalogue: Timers & Sensors on page 52
  • White ceiling motion detector (PIR) with microphone acoustic sensor, for indoor use, suitable for bathrooms and toilets.
  • Automatic lighting control based on presence and brightness with acoustic function.
  • 1 channel, IP44.
  • Activation by the PIR sensor and deactivation by the microphone (microphone can also be deactivated).
  • Flexible installation options, ceiling installation using clamping brackets as well as flush-mounted or surface mounting using the optional surface frame.
  • Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps.
  • Zero-cross switching for relay-saving switching and high lamp loads up to 400W >2W.
  • Detection area can be limited using three enclosed segments.
  • Instant start-up possible via factory preset.
  • No unintentional adjustment due to covered up controls.
  • Adjustable brightness switching value and switch-off delay.
  • Sensitivity can be reduced to limit detection area.
  • Pulse function.
  • Test function.
Code Cat# Type Detection Angle Colour Features Indoor Use Installation Height Mounting Power
1030045 1030045 Motion Detector (PIR) with microphone acoustic sensor 360° x 12mt diagonal radius White 1ch, Zero-cross switching 400W LED load >2W IP40 when fitted 2 to 3 mt Ceiling Flush Mount 124.8mm Ø / 65mm Ø cut out 230V AC, 50-60Hz, 10A

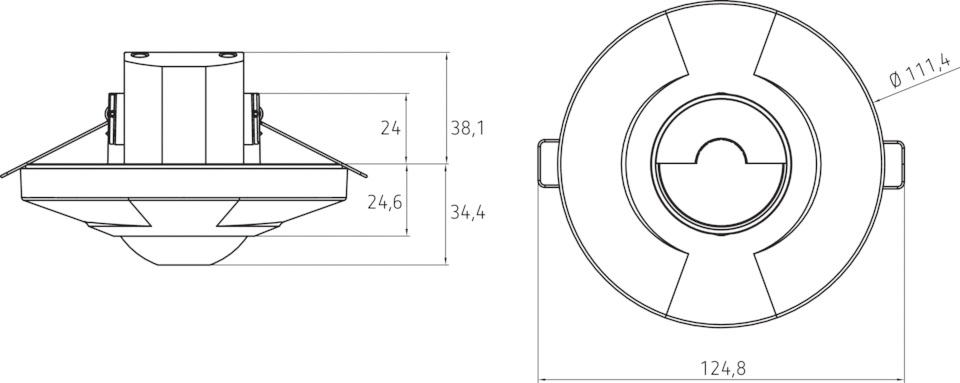

TD 1030045 technical drawing
