Theben theLuxa P300 WH PIR Motion Detector White 300°

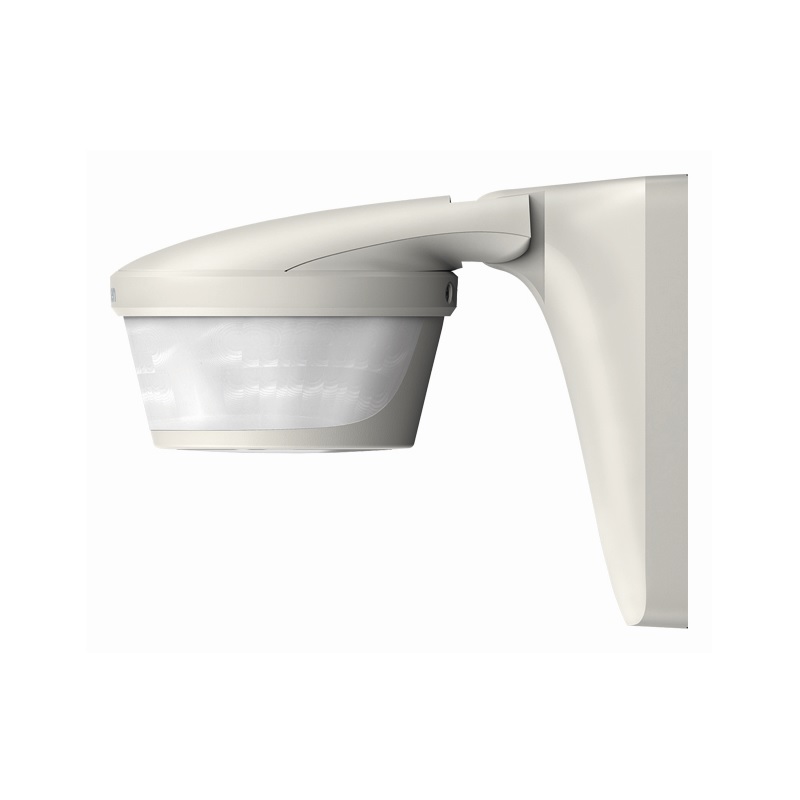

1010610 theLuxa P300 WH.jpg
View item in Hamer catalogue: Timers & Sensors on page 44
  • Motion detector (PIR) White.
  • Automatic lighting control based on presence and brightness.
  • 300° detection angle, and up to 16mt detection range.
  • For outdoor use IP55.
  • For installation on walls and ceilings 2 to 4mt.
  • For larger, commercial outdoors properties such as offices, public buildings, hotels, schools, car parks and warehouses.
  • Adjustable brightness switching value and switch-off delay.
  • Sensitivity can be reduced to limit detection area.
  • Area limit via lens attachment.
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
  • Teach-in of current brightness value possible.
  • Pulse function.
  • Test function for checking detection area.
  • Installation on flush-mounted socket possible (60 mm).
  • Single-handed plug-in installation.
  • Instant start-up possible via factory preset.
  • Controls are place protected.
  • Terminal for protective earth conductor.
  • Spacer and corner angle included in delivery.
Code Cat# Type Detection Angle Colour Features Outdoor Use Installation Height Power
1010610 1010610 Motion Detector (PIR) 300° White Sensitivity can be reduced to limit detection area IP55 2 to 4 mt 230V AC, 50Hz, 10A

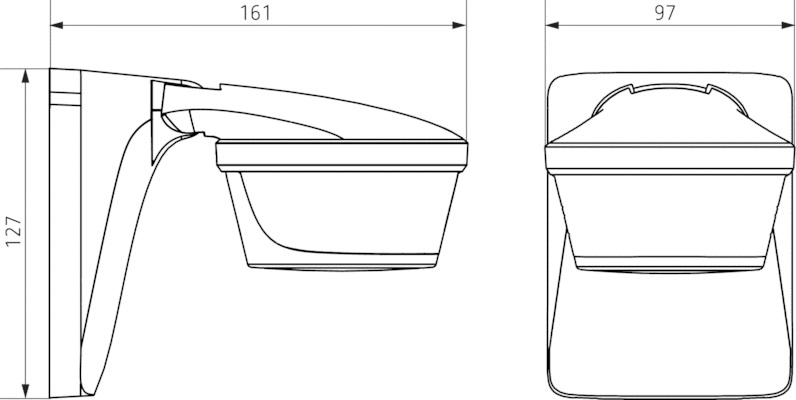

TD_1010610 theLuxa P300 WH_technical drawing.jpg
