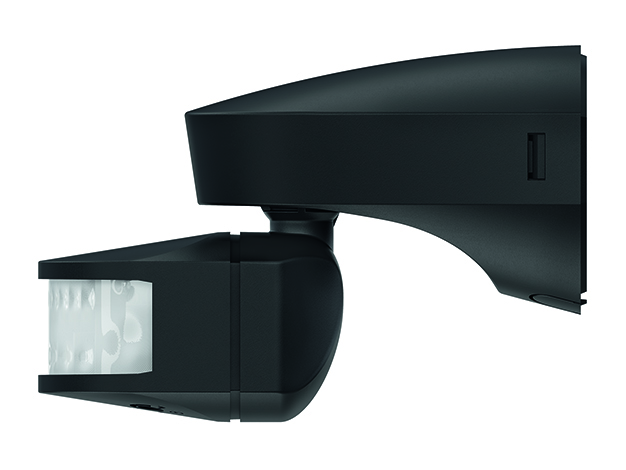

Theben theLuxa E180 BK PIR Motion Detector 180deg Black
View item in Hamer catalogue: Timers & Sensors on page 50
  • Motion detector (PIR).
  • Automatic lighting control based on presence and brightness.
  • 180° detection angle, with 3mt wide x 12mt in front semi-circular detection range.
  • For outdoor use.
  • Sensor head can be turned by ± 90° horizontally and by 30° downwards/upwards.
  • Adjustable brightness switching value and switch-off delay.
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
  • Area limit via stickers.
  • Test function for checking detection area.
  • Single-handed plug-in installation.
Code Cat# Type Detection Angle Colour Features Outdoor use Installation Height Power
1010206 1010206 Motion Detector (PIR) 180° Black Adj sensor ± 90° horizontally and by 30° vertically IP55 2,5 mt 230V AC, 50Hz, 10A

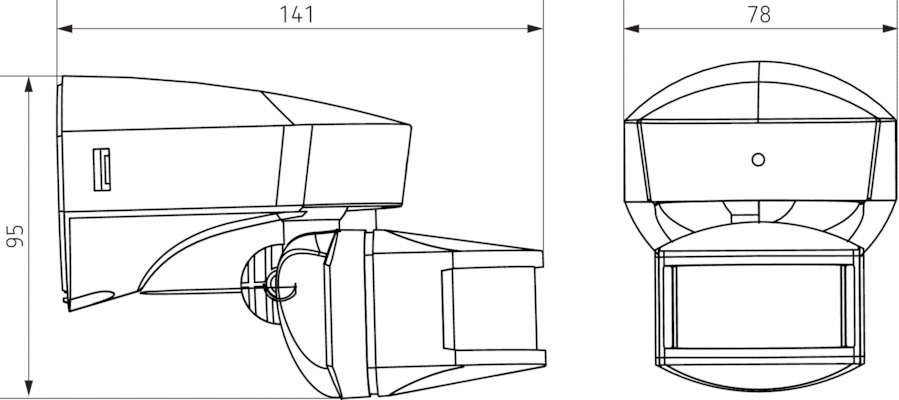

TD_1010206 theLUXA E180BK_technical drawing.jpg
