Theben theLuxa S360BK PIR Motion Detector 360deg Black
View item in Hamer catalogue: Timers & Sensors on page 48
  • Motion detector (PIR), Black.
  • Automatic lighting control based on presence and brightness.
  • For outdoor use.
  • For installation on walls and ceilings.
  • 360° detection angle, with 16mt round detection range.
  • Sensor head can be turned by ± 90° horizontally, by 45° downwards and by 90° upwards.
  • Adjustable brightness switching value and switch-off delay.
  • Sensitivity can be reduced to limit detection area.
  • Area limit via lens attachment.
  • Mixed light measurement suitable for the control of fluorescent, incandescent, halogen lamps and LEDs.
  • Zero-cross switching for relay-saving switching and high lamp loads.
  • Teach-in of current brightness value possible.
  • Pulse function.
  • Test function for checking detection area.
  • Installation on flush-mounted socket possible (60 mm).
  • Single-handed plug-in installation.
  • Instant start-up possible via factory preset.
  • Controls are place protected.
  • Terminal for protective earth conductor.
  • Corner angle included in delivery.
Code Cat# Type Detection Angle Colour Features Outdoor Use Installation Height Power
1010511 1010511 Motion Detector (PIR) 360° Black Adj. sensor +/- 90° horizontally, 45° downwards, 90° upwards IP55 2 to 4 mt 230V AC, 50Hz, 10A

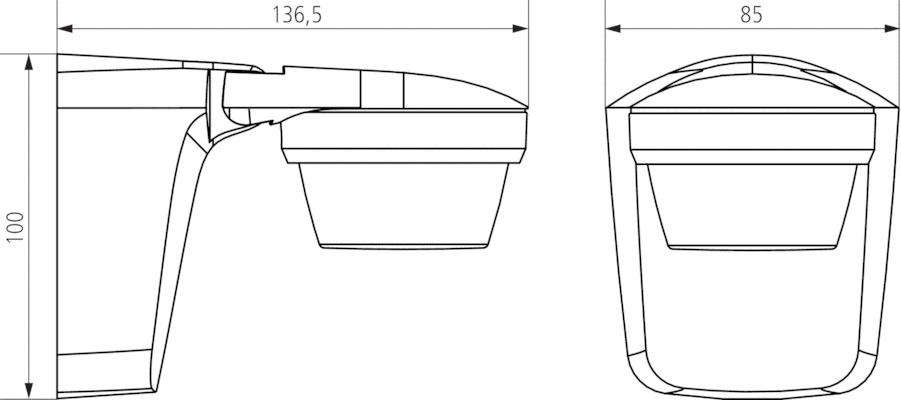

TD_1010511 theLUXA S360 BK.jpg
