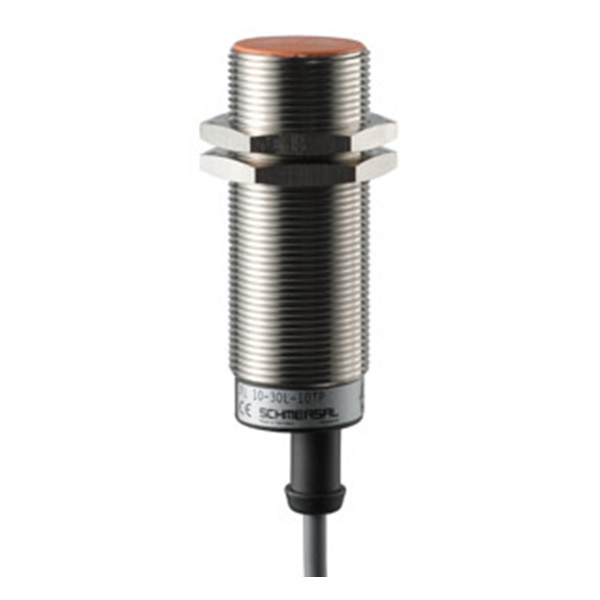

Schmersal M30 DC-3 Wire Inductive Proximity Switch - IFL 10-30L-10TP

Features

Schmersal proximity switches respond to targets that come within the active range of their generated sensing fields.
These units are completely self-contained, and house a field generator, amplifier, and other necessary circuitry to accomplish electronic switching.
Virtually unlimited service life.
Metal enclosure M30 x 1.
Long design.
DC 3-wire.
Housing construction - cylinder, thread.
Conductor with strain relief.
Other variants available on request.
Minor differences between the printed image and the original product may exist.

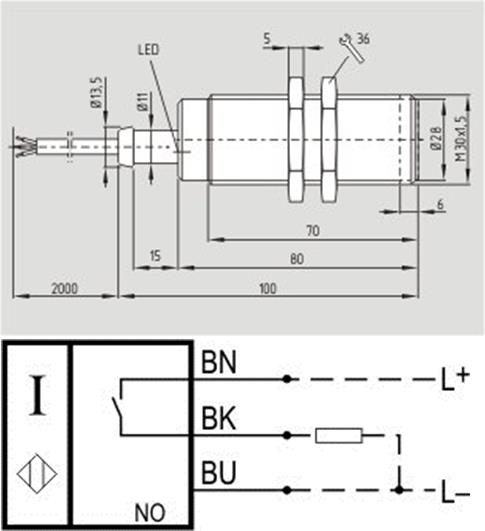

Code	Cat#	Dimensions L x Ø	Supply Voltage	Contacts	Design of Control Output	LED Switching Display	Switching Distance	Electrical Connection	Notes
1126987	IFL 10-30L-10TP	100mm x M30	10-30VDC	1 NO	PNP	Yes - yellow LED	10mm	2m cable	Indent Item
